KJ-917（25）
FSKEJU
KJ-917（25）

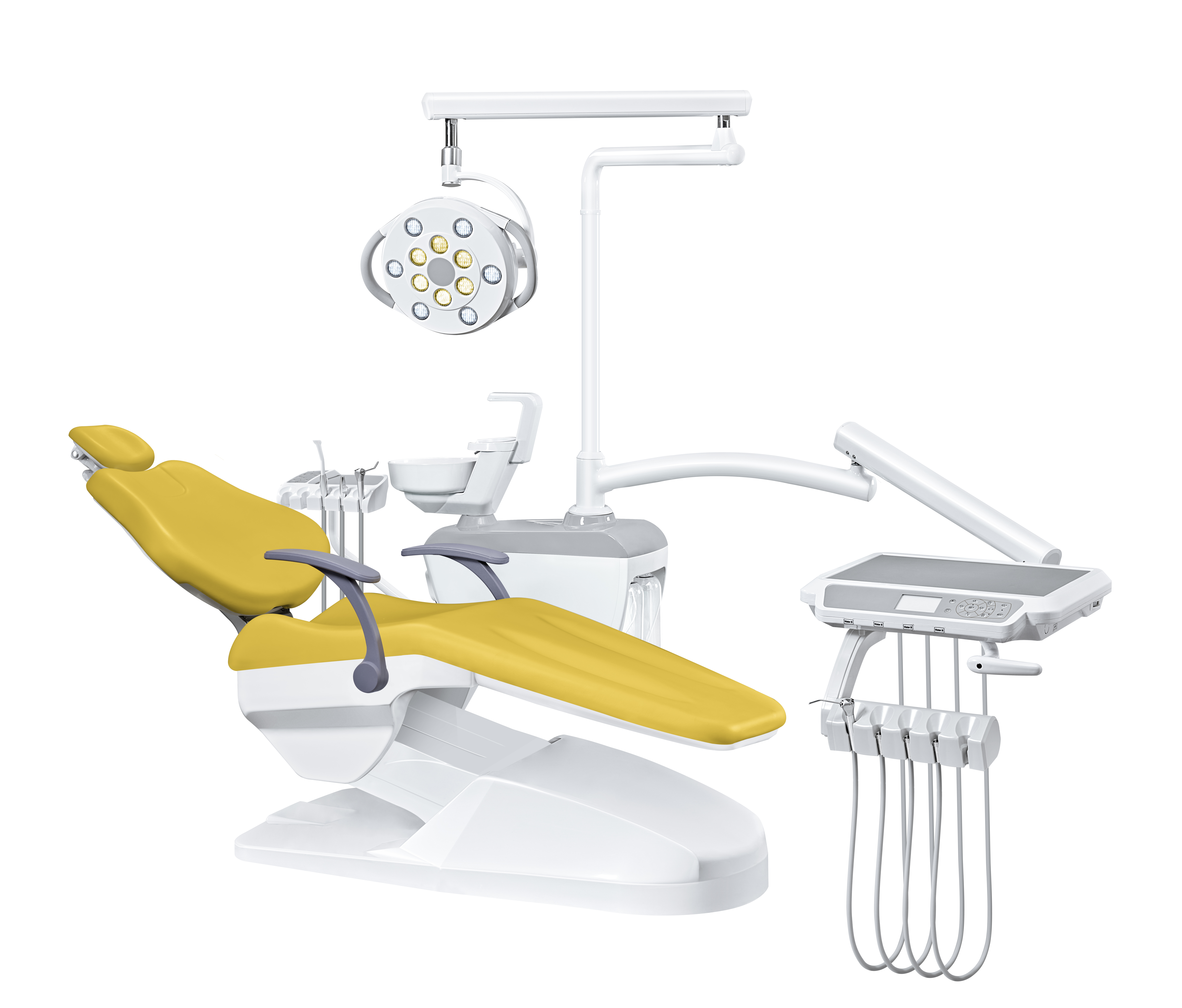

The FSKEJU KJ-917(25) dental chair unit is an integrated treatment unit designed for professional dental clinics and treatment rooms. It combines patient positioning, operating illumination, handpiece connections, suction, assistant-side controls and foot operation within a single dental workstation.
A key configuration feature of the KJ-917(25) is its 12-LED sensor operating lamp together with a metal chair backrest and 24V DC motor. These components are combined with the instrument delivery and assistant systems required for routine chairside dental work.
For additional treatment-unit configurations, explore our dental unit range.
KJ-917(25) Product Snapshot
Model: KJ-917(25)
Product Type: Dental Chair Unit
Operating Light: 12-LED Sensor Lamp
Chair Backrest: Metal Backrest
Chair Drive: 24V DC Motor
Input Power: 350VA
Water Pressure: 0.2–0.4 MPa
Air Pressure: 0.5–0.6 MPa
The KJ-917(25) integrates the main chairside components required for a complete dental treatment station. The standard configuration is shown below. Final included components and optional accessories should be confirmed against the quotation and order specification before production and shipment.
Standard Component | Quantity |
|---|---|
High-speed handpiece connector | 2 sets |
Low-speed handpiece connector | 1 set |
3-way syringe, cold & hot | 2 sets |
12-LED sensor operating lamp | 1 set |
Built-in / external ground box configuration | 2 sets |
Strong & weak saliva ejector with switch | 1 set |
Heat-resistant silicone pad for tool tray | 1 set |
Movable assistant-side control device | 1 set |
Four-function foot pedal | 1 set |
24V DC motor and tubing | 1 set |
Chair cushion with metal backrest | 1 set |
Doctor's stool | 1 set |
Configuration Confirmation
Accessory packages may vary according to the quotation and ordered configuration. If an LED scaler, curing light, specific upholstery material or another accessory is required, please specify it during quotation so that its inclusion can be confirmed in the final configuration.
The KJ-917(25) includes a 12-LED sensor operating lamp for illumination of the oral treatment area. The sensor interface provides an additional method of operating the light without relying only on conventional manual controls.
If illumination range, color temperature, control modes or lamp-head adjustment are important to your project, please contact our team for the applicable operating-light specification before ordering.
The KJ-917(25) uses a metal backrest as part of the patient-support structure while maintaining a relatively slim profile around the chair.
For projects requiring specific structural-material information or a documented patient-load rating, please contact our team for the applicable technical specification.
The KJ-917(25) standard configuration includes a 24V DC chair motor together with a four-function foot pedal. These components form part of the dental chair positioning and operator-control system.
Foot-operated functions keep frequently used controls accessible during treatment. If specific pedal functions or chair-positioning controls are important to your project, please include these requirements when reviewing the final configuration.
The standard configuration provides two high-speed handpiece connections, one low-speed handpiece connection and two hot/cold 3-way syringes. A heat-resistant silicone pad is also provided for the instrument tray.
Instrument layout should be considered together with treatment workflow, operator position and the accessories required by the clinic. For additional planning considerations, review our guide on dental unit instrument tray configuration.
A movable assistant-side control device is included together with strong and weak suction functions. This arrangement keeps commonly used assistant-side components accessible within the treatment station.
Suction performance depends on the complete dental unit installation and supporting air or vacuum system. Utility requirements and the selected suction configuration should therefore be reviewed before clinic installation.
The KJ-917(25) requires appropriate electrical, compressed-air and water connections as part of the treatment-room installation. The main utility specifications are shown below.
KJ-917(25) Technical Parameters | |
|---|---|
Power Supply | 220V 50Hz / 110V 60Hz |
Input Power | 350VA |
Water Pressure | 0.2–0.4 MPa |
Air Pressure | 0.5–0.6 MPa |
Upholstery | Available according to selected material and color options |
Package Dimensions | Available according to final packing configuration |
Gross Weight | Available according to final product and packing configuration |
A dental unit should be considered together with the treatment room's electrical, water, drainage and compressed-air infrastructure. Reviewing these requirements before delivery can reduce installation problems and unnecessary changes to utility points.
✓ Voltage and frequency: select the 220V 50Hz or 110V 60Hz version required for the destination market.
✓ Water supply: verify that the treatment room can provide the required 0.2–0.4 MPa water pressure.
✓ Compressed air: verify that the supporting air system can provide the required 0.5–0.6 MPa pressure.
✓ Drainage: review the required drainage position and plumbing arrangement.
✓ Floor box configuration: select the applicable built-in or external utility connection arrangement.
✓ Room clearances: request the applicable installation drawing when planning chair position, cabinets and operator movement.
For clinic projects and distributor orders, the complete configuration should be confirmed in writing rather than relying only on photographs or a general model name. This is particularly important when comparing different configurations within the same dental chair series.
✓ Standard configuration: review every included instrument and accessory in the quotation.
✓ Upholstery: select the required cushion material and available color option.
✓ LED scaler and curing light: specify whether these accessories are required and verify their inclusion in the final quotation.
✓ Operating light: review the applicable 12-LED lamp specification and required adjustment functions.
✓ Shipping data: request package dimensions, gross weight and container-loading information for the final order configuration.
✓ Documentation: specify the technical and regulatory documentation required for the destination market.
✓ After-sales support: review installation guidance, spare-parts requirements and service arrangements before shipment.
Founded in 2009 in Foshan, Guangdong, FOSHAN KEJU MEDICAL APPARATUS CO., LTD. designs, develops, manufactures and supplies dental equipment, with dental units forming a core part of our product range.
We supply dental treatment units for clinic, distributor and equipment-project requirements. When certification or regulatory documentation is required, please contact our team to confirm the applicable certificate, product scope and documentation required for the destination market.
Learn more about our manufacturing background on the FSKEJU About page, or review our service support for installation, operation and after-sales information.
This product is the FSKEJU KJ-917(25) dental chair unit.
The standard configuration includes one 12-LED sensor operating lamp. If illumination range, color temperature or other lamp specifications are important to your project, please contact our team for the applicable lighting specification.
Yes. The KJ-917(25) is configured with a metal backrest. If the exact metal composition is required for procurement documentation, please contact our team for the applicable material specification.
The KJ-917(25) requires 0.2–0.4 MPa water pressure and 0.5–0.6 MPa air pressure. Electrical configurations are available for 220V 50Hz and 110V 60Hz. Please specify the required electrical version when ordering.
LED scaler and curing-light availability depends on the ordered KJ-917(25) configuration. If these accessories are required, please specify them during quotation and verify their inclusion in the final configuration list before production.
Packing dimensions and gross weight depend on the final product configuration and packing arrangement. Please request the applicable shipping specification before calculating freight, container loading or warehouse requirements.
Please provide the destination country, required quantity, electrical specification, preferred upholstery or color, required accessories and any project-specific documentation requirements. This information helps our team prepare the appropriate product configuration and shipping details.
Request KJ-917(25) Configuration and Quotation
Provide your destination country, required quantity, voltage, upholstery preference and required accessories. Our team can then review the appropriate KJ-917(25) configuration, technical requirements, documentation and shipping information with you.
